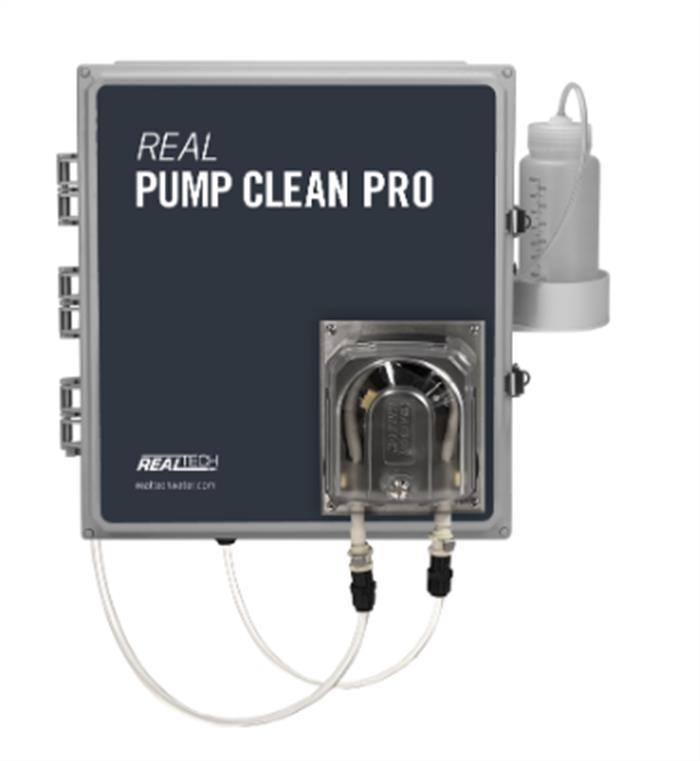

PUMP CLEAN PRO SYSTEM
For harsh wastewater monitoring applications, the patented Pump Clean Pro system is the ideal accessory. This multi-component system combines automatic cleaning, purging and pumping all in one for Real Tech’s 1000 series model sensors. Cleaning is essential for optical sensors to limit fouling and improve sensor accuracy. The chemical cleaning component of the system automates the process, with configurable cleaning cycles to match on-site demands. The system utilizes compressed air or pressurized water to automatically purge the systems intake lines at regular intervals, reducing buildup or clogging. The long life, high performance pump with large sample tubing provide reliable pumping and flow to the system for non-pressurized or open channel applications. The Pump Clean Pro system saves time and lowers maintenance while improving overall operation and accuracy for wastewater monitoring system.
Producer: Real Tech
Origin: Canada

FEATURES & BENEFITS

  • For use with 1000 series bypass sensors
  • Saves time and lowers maintenance
  • Limits fouling and enhances sensor performance
  • Cleaning, purging and pumping in one system
  • User configurable automatic cleaning cycle
  • Recapture feature recycles cleaning fluid
  • Purging reduces clogs and buildup
  • Long life, high performance pump

CHARACTERISTIC

TECHNICAL DATA

Cleaning Frequency

User configurable

Cleaning Capacity

1L storage container, cleaning fluid recapture feature reduces fluid replenishment frequency

Intake Purge Frequency

User configurable

Intake Line Purge Pressure

100 PSI maximum (compressed air or pressurized water)

Alarms

Leak, Cleaning Fluid Low, Cleaning Fluid Empty, Sample Tube, No Flow, Air Leak

Dimensions

15.82”H x 13.82”W x 9.00”D

Enclosure

NEMA 4X, wall mountable

Electrical/Communication

From Controller

Fluid Connections

3/8" tube push connect fittings

Flow Rate

User configurable

Sample Line Flow

500 mL/min minimum (pressurized applications)

Head Height

25 feet maximum (open channel applications)

Horizontal Distance

100 feet maximum (open channel applications)

Ambient Temp.

0 to 45°C (32 to 113°F)

Water Temp.

0 to 70°C (32 to 158°F) at 21°C (69.8°F) Ambient temperature

Weight

45 lb

Warranty

2-year limited warranty
